Security is a top priority for businesses and educational institutions, and a reliable CCTV camera system is essential for ensuring safety and surveillance. However, choosing the right camera lens can be just as important as selecting the camera itself. The focal length of a lens determines how much area is covered and how detailed the footage will be. Understanding the relationship between focal length, field of view, and object distance can help in making the right choice for different security needs.
Key Benefits of Choosing the Right CCTV Lens:
- Optimal Coverage: Selecting the right focal length ensures the best balance between coverage area and detail clarity.
- Improved Identification: Higher focal lengths allow better identification of faces and objects at a distance.
- Enhanced Security Efficiency: Avoiding blind spots and ensuring the right zoom level makes surveillance more effective.
- Cost-Effective Solution: Choosing the right lens helps reduce the number of cameras needed for full coverage.

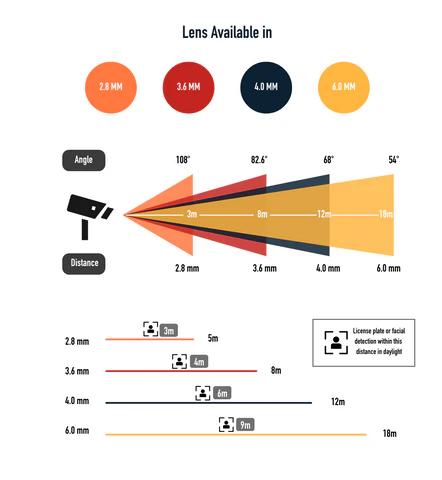

Understanding Focal Length and Field of View
The focal length of a CCTV camera lens impacts how much area is covered and the level of detail captured. Here’s a simple way to understand it:
The relationship can be summarized as:
- The shorter the focal length → the wider the field of view → the broader the monitoring area
- The longer the focal length → the narrower the field of view → the narrower the monitoring area
- Shorter focal length (e.g., 2.8mm – 4mm): Wider field of view, covers more area but with less detail at a distance.
- Longer focal length (e.g., 6mm – 12mm): Narrower field of view, covers a smaller area but provides more detail for distant objects.
Lens Recommendations for Different Scenarios:
- Elevators: Require a wide field of view with limited range → Use 2.8mm – 4mm lens.
- Outdoor Surveillance: Need a balance between depth and field of view → Use 6mm – 8mm lens.
- Garages/Warehouses: Require better detail at longer distances → Use 6mm – 12mm lens.
Monitoring Distance Calculation
To calculate how far a CCTV camera can monitor with different resolutions and focal lengths, consider the following estimates:
For a 2MP Camera with a 4mm lens (N=4 in this case):
- Face & license plate recognition: Up to 6 meters (1.5 × 4 = 6m)
- Physical body identification: Up to 12 meters (3 × 4 = 12m)
- Motion detection: Up to 24 meters (6 × 4 = 24m)
Note: The effectiveness of a security camera also depends on external factors such as lighting, positioning, and weather conditions.
Additional Considerations for Outdoor Surveillance
If you’re installing cameras outdoors, consider factors like:
- Weather Resistance: Choose cameras with IP66 or IP67 ratings for durability in harsh conditions.
- Infrared Night Vision: Essential for clear footage in low-light environments.
- Smart Motion Detection: AI-powered analytics can reduce false alarms and enhance security monitoring.
If you’re unsure about which CCTV camera is best for your needs, feel free to contact our expert team for professional guidance. Security is an investment—make it count!
Final Thoughts
Selecting the right CCTV lens is crucial for achieving optimal surveillance coverage and image clarity. By understanding focal length, field of view, and monitoring distance, businesses and institutions can make informed decisions to enhance security. Whether you’re securing a commercial property, school, or warehouse, the right CCTV system ensures clarity, reliability, and intelligent monitoring.
